Description
Semi-automatic tyre changer, designed to mount and demount tyres for motorcycle, moped, ATV*, Go-kart and turf maintenance vehicles. With a traditional bead breaking system and self-centering turntable it can accommodate rims from 6″ to 24″ as supplied. Made in Italy.
Features:
- Proven and reliable semi-automatic swingarm configuration and manual locking system for the vertical working arm.
- Self-centering turntable with capacity from 6″ to 24″ and 3 different clamping positions, easily selectable without the use of extra tools.
- Traditional bead braking system equiped with a specific rim protection cover.
- Tool head supplied with plastic protection inserts for alloy rims (other head styles optional).
Specifications:
- Power supply – 230 V
- Weight – 174 kg
- Air supply – 8-10 bar
- Motor power – 0.75/1 kW
- Clamp range – 6″-24″
- Bead breaker max. opening – 310 mm
- Bead breaker max. load – 2,500 kg
- Max. wheel diameter – Ø960 mm (37″)
- Max. wheel width – 250 mm (10″)
- Rotation speed – 6 RPM

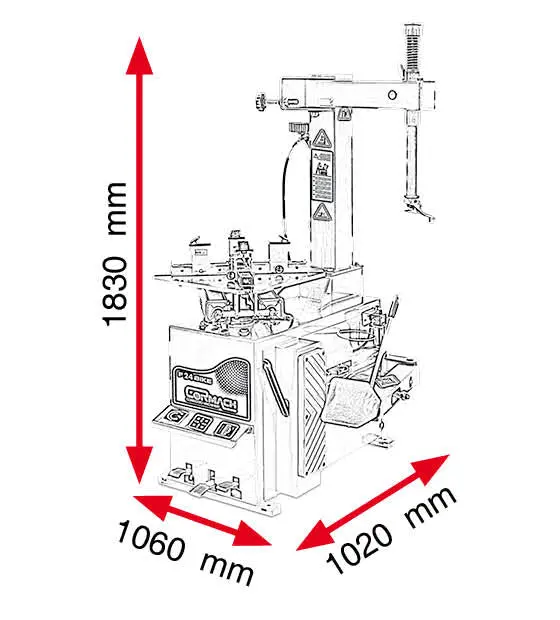

- Dimensions – 1,830 x 1,060 x 1,020 mm
* Optional wheel clamps are available separately to make it easier to work on ATV wheels.
